Motorized Hydraulic Rotating Hook
The motorized hydraulic rotating hook is a specialized lifting equipment that combines hydraulic power with rotational functionality. It has built-in components such as a motor and a hydraulic power unit, featuring excellent sealing performance that enables it to adapt to harsh industrial environments. It can be used with cranes such as overhead traveling cranes, tower cranes, gantry cranes, and quay cranes, and is mainly applied in heavy-duty cranes and lifting operations.
Structural Composition

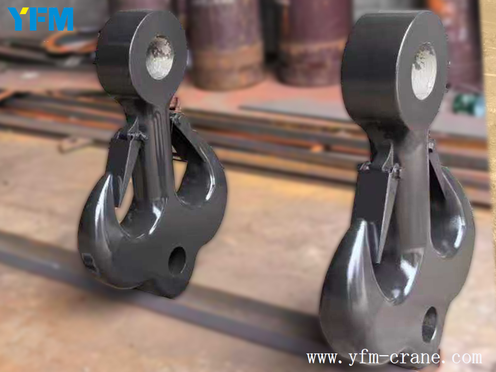

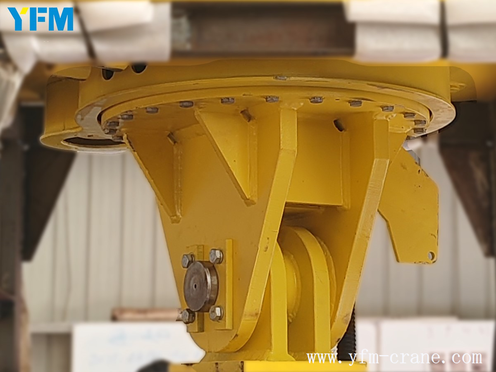

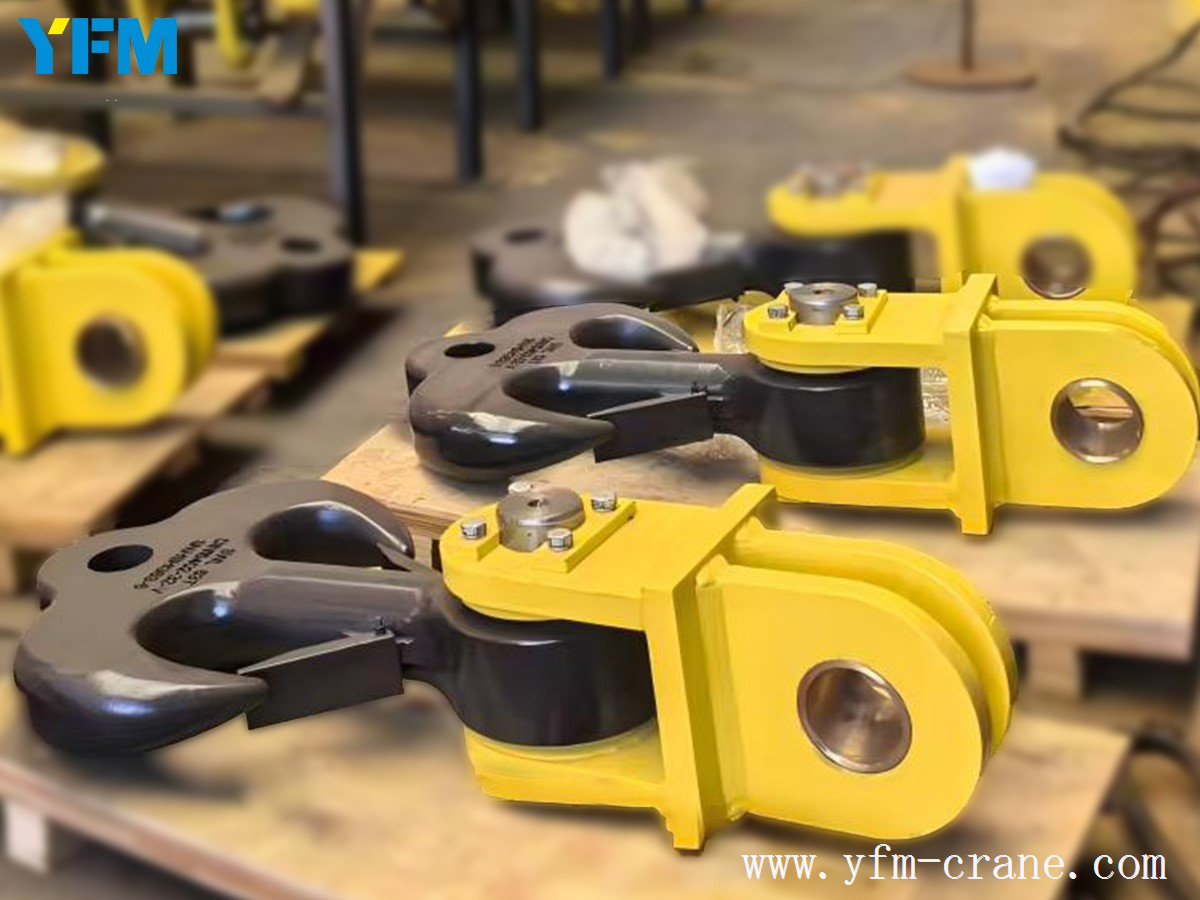

The motorized hydraulic rotating hook usually consists of a hook body forged from high-strength alloy steel and subjected to heat treatment to withstand heavy loads. The hook is connected to a rotating assembly, which is supported by bearings to ensure smooth rotation. The hydraulic motor and related components (such as valves and pipelines) are integrated into the hook block or a nearby housing. Some models are also equipped with a locking mechanism that can fix the hook in a specific position when needed.
Working Principle
Power is supplied by a hydraulic power unit driven by an electric motor. The hydraulic system typically includes components such as a hydraulic pump and hydraulic valves. The hydraulic pump generates pressure, which is transmitted to the hook's rotating mechanism through hydraulic oil to drive a hydraulic motor or actuator, enabling the hook to rotate 360 degrees around its vertical axis. The rotation can be controlled smoothly and precisely, facilitating operators to accurately adjust the load position.
Typical Application Industries
- Wind Power Industry: Installation of tower drums, blades, and nacelles
- Heavy Machinery Manufacturing: Equipment final assembly and transportation of large components
- Construction and Steel Structure: Installation of prefabricated components, steel beams, and columns
- Ports and Terminals: Loading and unloading of special cargo and engineering vehicles
- Shipbuilding and Maintenance: Hoisting of hull sections and equipment
- Mold Industry: Installation and replacement of large injection molds and die-casting molds
Contact
The Motorized Hydraulic Rotating Hook is more than just a tool-it represents an intelligent upgrade to traditional hoisting methods. It transforms uncontrollable physical swings into precisely manageable rotations at your fingertips, fundamentally enhancing operational efficiency, safety, and accuracy.
If you are seeking a better solution for bulky and hard-to-manage hoisting tasks, this product is exactly your ideal choice.
