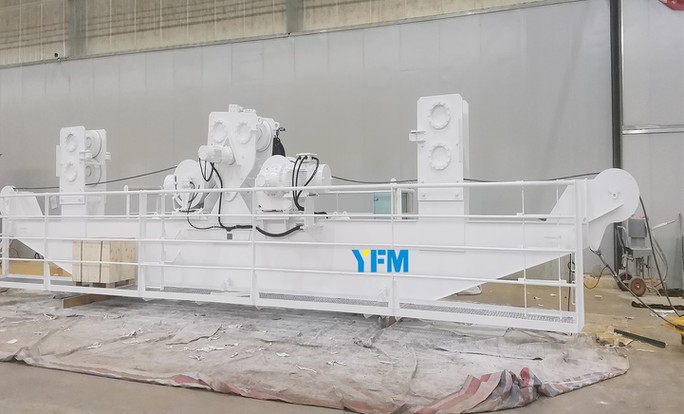

This container vessel monorail crane is a single-beam marine lifting device, also known as a provision crane or traversing single beam crane.

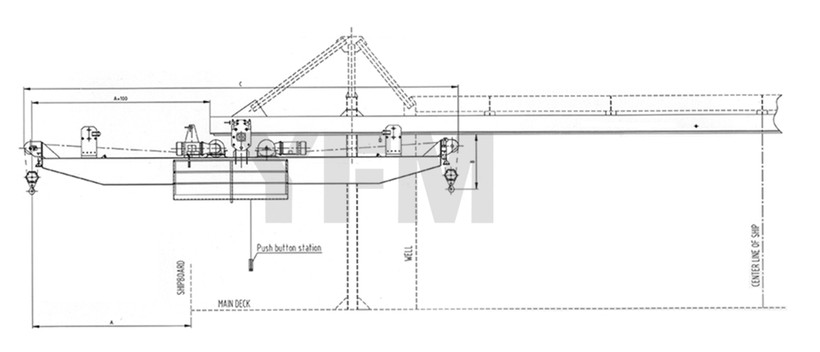

The container vessel monorail crane adopts a translational design and is equipped with two hoisting units located at both ends of the single beam. The hoisting mechanisms are mounted on the movable beam, which can move along the track beam. The output gear of the traveling mechanism meshes with the rack, enabling it to drive the movable beam to move along the track beam. Additionally, it features a position self-locking function. One end of the movable beam can extend beyond the ship's side for operations.
Typically, the container vessel monorail crane is generally installed near the cargo hold at the stern of a ship and fixed on the vessel via a single-beam track. Their main purpose is to lift and transport crew supplies, marine equipment, engine room components, and other items. YFM can provide customized designs based on the user's operating environment and ship layout.
Structural Features
Box-type welded structural track beam
Box-type movable beam (core component)
Two hoisting mechanisms
One traveling mechanism
One cable drum
One locking device
One electrical control box
Electric / electro-hydraulic system
Safety Devices
The container vessel monorail crane can operate normally when the ship's inclination angle does not exceed 5°/2°. When it needs to be stopped, the locking device enables reliable positioning of the crane to prevent slipping. Once the locking device is activated, all movements of the crane will be disabled; when the locking device is unlocked, the crane resumes normal operation.
The overall design structure is safe and reliable. The container vessel monorail crane certifications such as CE, CCS, BV, ABS, GL, DNV, LR, RMRS, and NK can be provided.
Technical Parameter
This container vessel monorail crane operating environment design conditions: The ship's inclination angle shall be < 5°/2°, and the ambient temperature shall range from -20℃ to +40℃. For other conditions, please consult the sales staff.
| SWL | 2.0 T | 3.0 T | 4.0 T | 5.0 T | 7.0 T | 13.0 T |
| Hoisting Speed | 0~15 m/min | 0~10 m/min | 0~10 m/min | 0~10 m/min | 0~15 m/min | 0~15 m/min |
| Travelling Speed | 0~10 m/min | 0~10 m/min | 0~10 m/min | 0~10 m/min | 0~10 m/min | 0~10 m/min |
| Hoisting Height | 20 m | 20 m | 25 m | 30m | 30 m | 30 m |
| Outreach Length | 3.5m | 4.5m | 5m | 5m | 3.5m |
5m |
Why Choose Us?
YFM can recommend a suitable crane model based on your actual operation needs, helping reduce unnecessary costs and resource waste. Meanwhile, we can provide certifications from major international classification societies to ensure the crane's quality.
Under proper use, YFM cranes have a service life of over 20 years. With more than 10 years of in-depth experience in the lifting industry, YFM boasts a professional and experienced design team, a manufacturing team with solid technical capabilities, and a comprehensive export sales and service team. We offer not only lifelong technical service support but also original spare parts supply.
