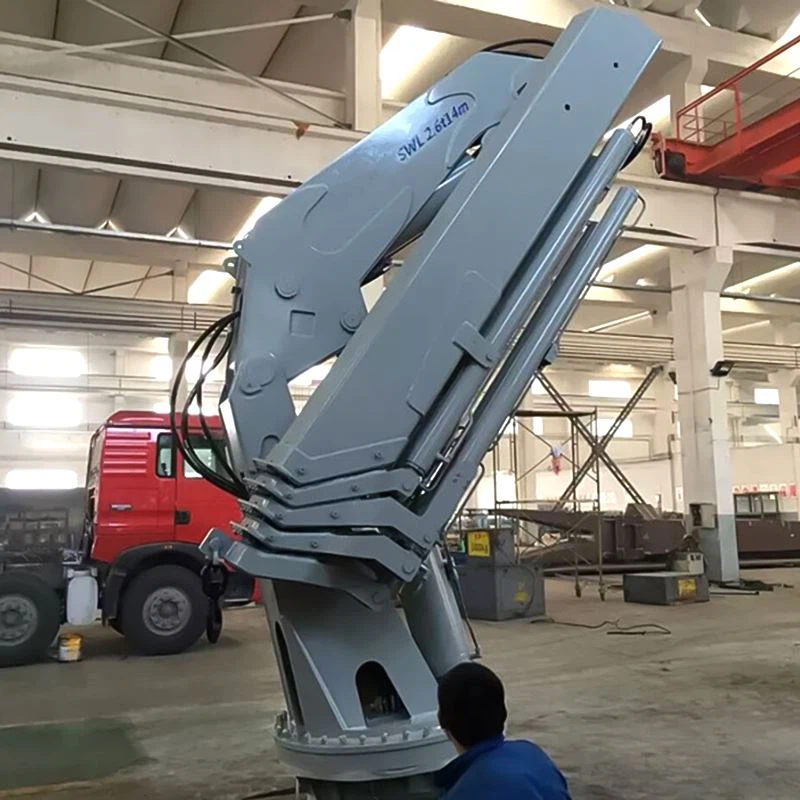

Foldable Boom Provision Crane
YFM Foldable Boom crane is a high-performance lightweight folding lifting equipment,specially designed for supply vessels.
As a ship replenishment crane, it combines portability, durability, and high efficiency.
The Foldable Boom crane not only has a strong load-bearing capacity but also adopts a foldable structure, which saves space and is suitable for various indoor and outdoor working scenarios.
The folding crane is not only used for the loading and unloading of goods on supply vessels and ship replenishment but also can be applied in construction sites, as well as warehousing and logistics.
CE and ISO standards.
CCS/RS/LR/ABS/RINA/DNV/BV

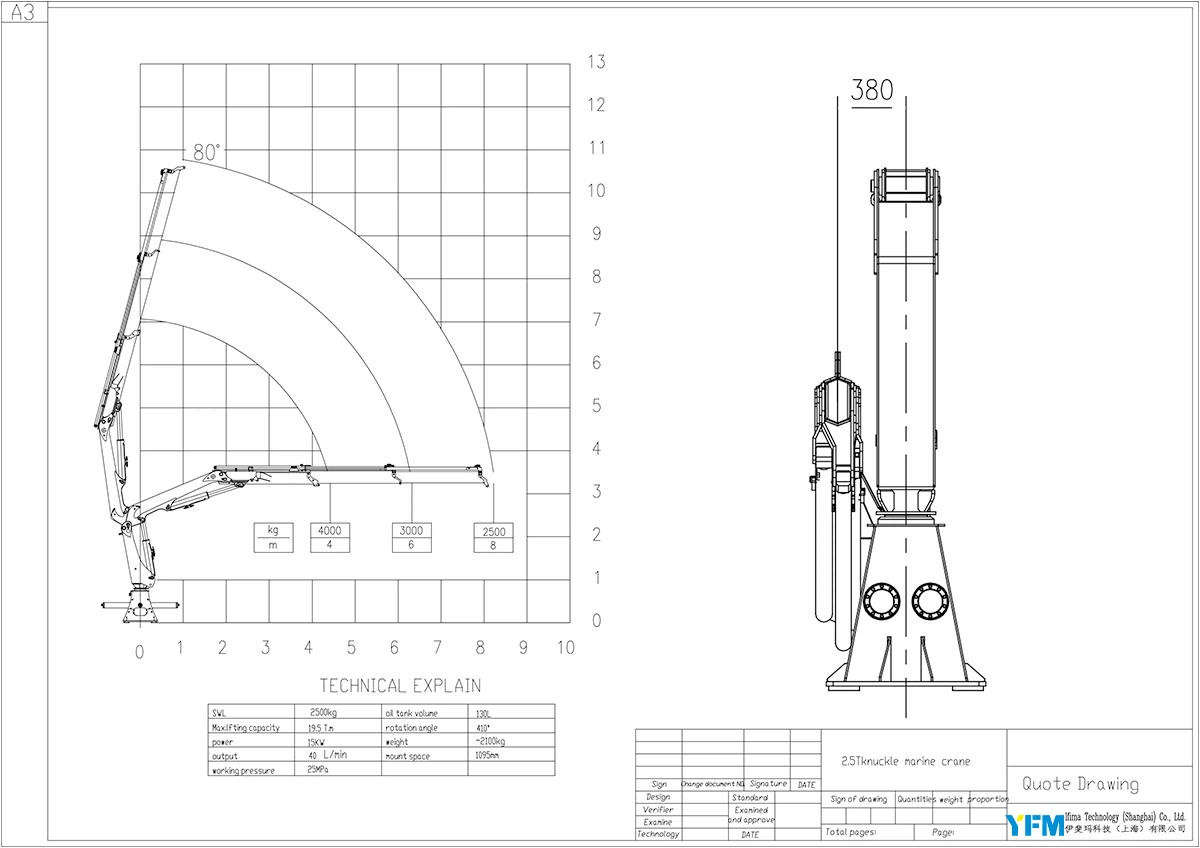

Design and Drawing
| Model | 2.5t 8m Foldable Boom Provision Crane | ||
| SWL | 2500kg | Max. working radius | 8m |
| Max. lifting capacity | 19.5 T.m | Min. working radius | 4m |
| Rotation angle | 410° | Luffing angle | 80° |
| Weight | ~2100kg | Working temperature | -40°~+50° |
| Power | 15kw | Power voltage | 380V/50HZ/3P |
| Oil tank volume | 130L | Packing length | 2493mm |
| Working pressure | 25MPa | Packing width | 1095mm |
| Output | 40L/min. | Packing height | 2195mm |
Features
01. Foldable and telescopic boom
02. Sturdy and durable
03. Customizable
04. 0-400° full rotation
05. Corrosion-resistant materials
06. Quick installation and operation
07. Strong applicability
08. Strong adaptability
09. Lightweight design
Why choose YFM Foldable Boom Provision Crane?
Portable and efficient -- The folding design facilitates quick deployment and is suitable for the needs of mobile operations.
Economical and energy-saving -- One machine can be used for multiple purposes, reducing the procurement cost of multiple devices.
Safe and stable -- Equipped with anti-sway technology and a secure locking device.
Rich options -- For example, options for power modes (electric/hydraulic) and installation methods (fixed/mobile).
ODM -- It can be flexibly designed according to different working scenarios.
OEM -- It can be sold with an entrusted brand.
One-stop service provider -- Saves time and cost.
Service -- 24-hour online service, covering pre-sales, in-sales, and after-sales.
high quality
OEM
Service
One-Stop Solution
Typical applications
Ships/ports
Loading and unloading of ship supplies and handling of dock goods.
Construction projects
Hoisting of materials in narrow construction sites.
Warehousing and logistics
The folding crane can efficiently transfer heavy goods without the need for fixed infrastructure.
Emergency rescue
A rapid response device in disaster relief.
Order now!
The folding jib crane -- Interprets convenient lifting with powerful performance.
If you need a quotation, customization, or bulk purchase, feel free to contact us!
