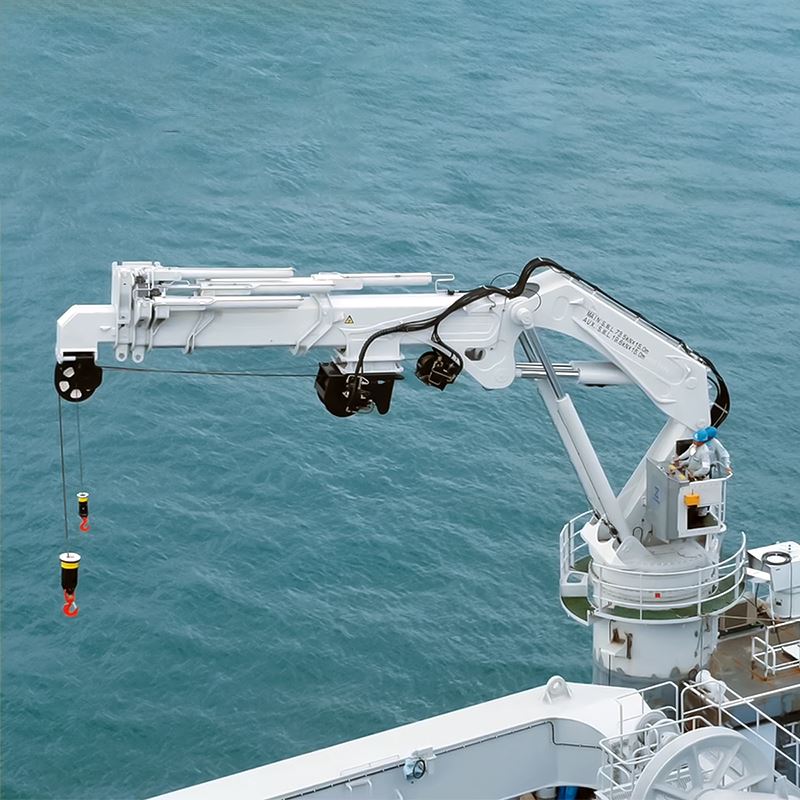

Fully Foldable Crane for offshore/marine
--- Space Innovation, Efficiency in Step - Redefining Mobile Lifting Solutions
YFM Fully Foldable Crane, adopting an innovative fully foldable structure and lightweight material technology, can be deployed or folded within minutes. Its transportation volume is reduced by 60%, significantly cutting logistics costs. It is ideal for offshore platforms, ships, port terminals, logistics warehousing, and emergency rescue industries.
A Fully Foldable Crane is a revolutionary modular lifting equipment designed for fast deployment, operation in narrow spaces, and flexible handling needs across multiple scenarios. Its one-touch hydraulic system enables deployment/folding within 15 minutes without requiring large auxiliary equipment, enhancing the response speed for temporary operations.
The Fully Foldable Crane also addresses the problem of lifting height restrictions and complies with ISO 10245 and CE safety standards.
Design Drawing
Below is a 1-ton, 5-meter, fully foldable crane designed according to the operational requirements of an Indonesian client. The drawings and main parameters are listed below for reference only.
Main Technical Parameters
1t-5 m Fully Foldable Crane
| SWL | 1T-5M | Hoisting height | 15m | ||
| Max. working radius | 5m | Slewing speed | 0~0.7r/min | ||
| Min. working radius | 0.9m | Luffing time | ~25s | ||
| Hoisting speed | Whole burden | 0~10m/min | Working condition | Trim | ≤2° |
| Light hook | 0~20m/min | Heel | ≤5° | ||
| Working temperature | -10℃~+50℃ | Power voltage | Motion power | AC 440V/60HZ/3P | |
| Motor power | 75Kw, IP55, F, Space heater | Control power | AC 220V/60HZ/1P | ||
| Class | LR | Packing size | 2350mm x 1500mm x 2050mm | ||
Features
- - Full - foldable design, small space occupation, and low transportation cost
- - 360° operation: Compact body with a telescopic boom (working radius: 8 - 35 meters)
- - Suitable for high-lifting operations (lifting height to 30m, customizable)
- - Integrated wireless remote control + cockpit dual operation modes
- - Equipped with an ELLand real-time load monitoring, with an error rate <1%.
- - Automatic overload protection
- - Anti - rollover warning
- - Emergency braking system
- - Diesel/electric/electro-hydraulic (optional)
- - Marine coating
- - High - strength steel structure
- - Adaptable to complex marine conditions
- - Modular maintenance
- - Compliant with CE, ISO 4301, and EN 13000 standards
- - CCS/BV/DNV/RINA/ABS/RS/LR (optional)
Shipping
The minimum transportation height of the YFM Fully Foldable Crane is ≤2.5 meters and the whole machine can be adapted for transportation in standard containers or flatbed trucks.
Why choose YFM?
- Supports customized configurations and complies with standards in multiple regions, including Europe, America, the Middle East, and Southeast Asia.
- The foldable design reduces transportation and warehousing costs, cuts energy consumption by 30%, and achieves industry-leading comprehensive operating expenses.
- Worry-free service: Provides on-site training, pre-stocked spare parts, and lifetime technical support.
Folding the volume, unlocking infinite possibilities -- YFM, the global leader in intelligent lifting technology
