Pedestal Offshore Cranes are heavy-lifting equipment specifically designed for offshore working conditions. They feature a fixed pedestal and a slewing upper structure, and have three basic movements: lifting, slewing, and luffing. They can be equipped with a main hook and an auxiliary hook, and are mainly used on offshore platforms.
YFM Pedestal Offshore Cranes are mainly driven by electric or hydraulic systems, among which hydraulic drive is more common. The cranes are typically equipped with safety devices, including boom angle limiters, hook anti-collision devices, and emergency release systems, to ensure operational safety.
Features
Lifting capacity: 5~200+ tons
Working radius: up to 40+ meters
Fixed pedestal
Equipped with lifting, slewing, and luffing mechanisms
Adopts high-quality marine-grade steel
Applies multi-layer heavy anti-corrosion coating system
Key structural components undergo special treatment
Steel structures optimized through Finite Element Analysis (FEA)
360° unrestricted rotation
Modular design
Easily accessible maintenance points
Spacious operator cabin providing a wide field of view
Anti-glare glass and user-friendly control layout
Standard configuration includes safety devices such as overload protection and limiters
Global technical support and services
Spare parts supply
Designed in compliance with API Spec. 2C standard
Manufactured in strict accordance with major international standards and classification society regulations (e.g., DNV-GL, ABS, LR, etc.)
Provision of comprehensive certification support
Optional
Operator cabin (equipped with air conditioning)
PLC control panel
Box-type boom or truss-type boom
Fixed boom type or Knuckle boom type
Auxiliary hook
Man-riding function
Active Heave Compensation (AHC)
Passive heave compensation
Rope luffing or cylinder luffing
Electric or hydraulic drive
Customized solutions
Certificates (CCS, ABS, BV, RINA, DNV, LR, RMRS, CE, etc.)
Operator cabin (equipped with air conditioning)
Type
Lorem ipsum dolor sit, amet consectetur adipisicing elit.

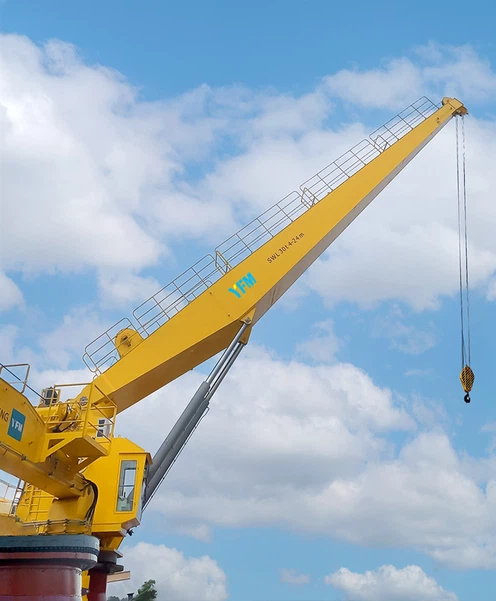

Box-type boom
cylinder luffing cranes,

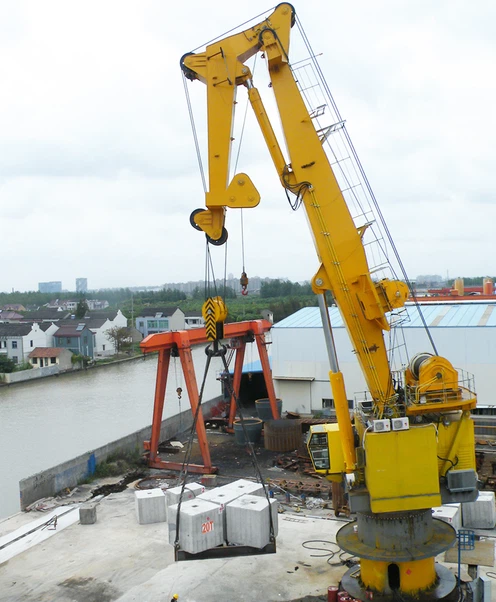

Knuckle boom type
cylinder luffing cranes

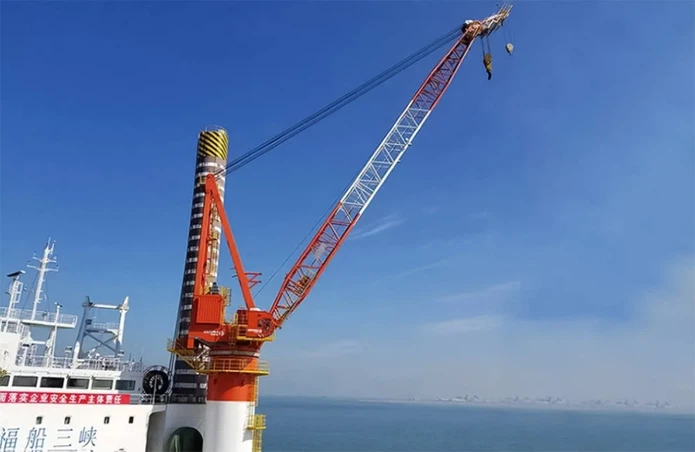

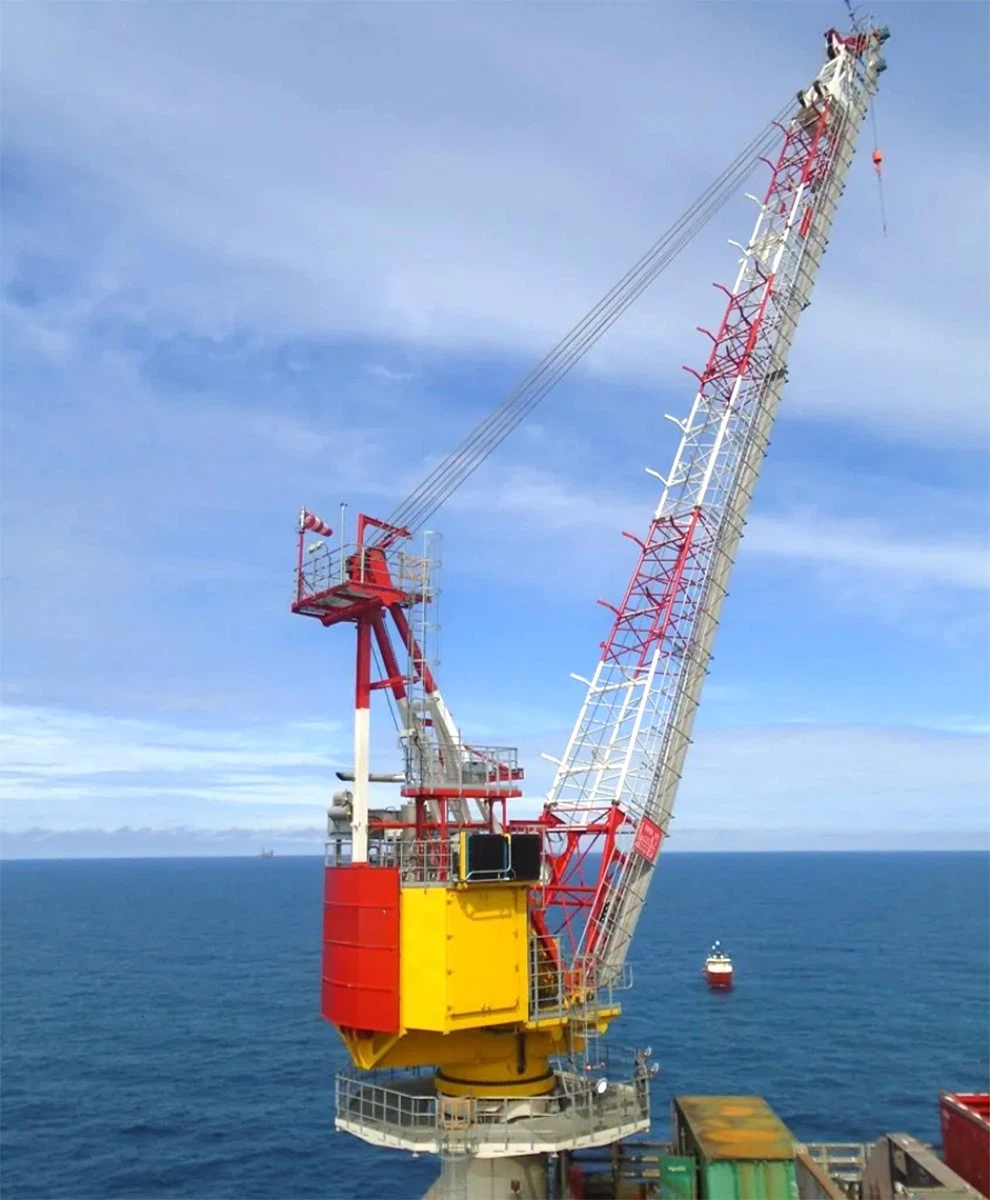

Truss-type boom
rope luffing cranes
Applications
- Lifting and transferring cargo from ships to offshore platforms or other marine facilities.
- Participating in offshore wind power equipment installation, oil drilling platform component installation, and other related work.
- Lifting and installing subsea pipelines, and assisting in the connection and laying of pipelines.
- Personnel transfer.
Why Choose us?
Choosing us means choosing certainty even amid wind and waves.
Our Pedestal Offshore Cranes are a combination of engineering technology and offshore practical experience. We don't make empty promises-we only focus on delivering products that can stand the test of time, wind, and waves.
YFM always pays attention to every detail of the product, refining its quality with meticulous craftsmanship; we consistently focus on the core concerns of our customers, serving their needs with a proactive response attitude. "Creating long-term and far-reaching value for customers through high-quality services" is not only YFM's business philosophy, but also an eternal value that every employee adheres to.
Welcome to contact us to obtain detailed technical parameters and discuss your specific needs with our engineers.
👉+86 15818704927
👉anne@yfm-crane.com/info@yfm-crane.com
Drawings
data
| Model | Load Capacity (T*m) |
Max.Boom Length (m) |
Pedestal Height (mm) |
Pedestal Dia. (mm) |
Lifting Min. Retracted |
Lifting Max. Fully Extend |
Est. Power (kw) |
| YFMKC-2T12m | 2 T x 12 m | 12 | 1500 | 762 | 2 T x 4 m | 2 T x 12 m | 16.0 |
| YFMKC-5T15m | 5 T x 15 m | 15 | 1500 | 1420 | 5 T x 5 m | 5 T x 15 m | 22.0 |
| YFMKC-5T23m | 5 T x 23 m | 23 | 1600 | 2159 | 5 T x 8 m | 5 T x 23 m | 22.0 |
| YFMKC-10T14m | 10T x 14 m | 14 | 1600 | 1620 | 10T x 5 m | 10T x 14 m | 32.0 |
| YFMKC-10T25m | 10T x 25 m | 25 | 2000 | 2080 | 10T x 9 m | 10T x 25 m | 50.0 |
| YFMKC-15T13m | 15T x 13 m | 13 | 1800 | 1820 | 15T x 5 m | 15T x 13 m | 50.0 |
| YFMKC-15T32m | 15T x 32 m | 32 | 2000 | 2250 | 15T x 11 m | 15T x 32 m | 75.0 |
| YFMKC-20T12m | 20T x 12 m | 12 | 1800 | 1820 | 20T x 4 m | 20T x 12 m | 75.0 |
| YFMKC-20T24m | 20T x 24 m | 24 | 2000 | 2250 | 20T x 8 m | 20T x 24 m | 75.0 |
| YFMKC-25T20m | 25T x 20 m | 20 | 2000 | 2050 | 25T x 7 m | 25T x 20 m | 90.0 |
| YFMKC-30T15m | 20T x 25 m | 25 | 2001 | 2051 | 30T x 6 m | 30T x 25 m | 175.0 |
| YFMKC-35T32m | 25T x 32 m | 32 | 4000 | 3200 | 35T x 6.5 m | 35T x 32 m | 250.0 |
Note
For main technical parameters of larger specifications and other types, please consult the sales manager for details. Customization is also available based on specific requirements.
