A-frame Davit Crane
Marine A-frame Davit Crane is used for launching, recovering, and storing lifeboats and rescue boats, and can also be referred to as a lifeboat/rescue boat davit crane. It is usually installed on both sides of the ship's deck. Relying on the boat's gravity, it hoists the boat outboard to complete the lowering operation. The recovery power is provided by an electric motor or hydraulic pump, enabling the recovery of lifeboats and fast rescue boats in harsh marine environments.
According to the power mode, it can be divided into electric davit crane and hydraulic davit crane.
The hydraulic type A-frame davit crane consists of an A-frame crane, davit arms, hydraulic cylinders, and an HPU.
The YFM A-frame davit crane is designed in accordance with classification society specifications to perform lifeboat release and recovery operations under conditions of maximum roll of 20° and 10° of longitudinal tilt.
Features
- SWL up to 12+ tons
- Working conditions ：list 20° ,trim 10°
- Adopts a rigid Type A frame structure
- Uses high-quality steel such as Q345B
- Multi-layer marine epoxy paint coating
- Remove rust G2.5
- Zinc Rich Epoxy Primer
- Configurable with an integrated HPU
- High-speed winch system(60m/min,optional)
- Constant tension system(120m/min,optional)
- Wave compensation system (optional)
- Designed and manufactured in accordance with classification society standards
- Complies with the SOLAS/LSA Code/MSC.47 (66)/MSC.48 (66)/MSC.81 (70)
- Certifications available: CE, CCS, ABS, LR, BV, RINA, DNV, KR, NK, etc.
Applications
The A-frame Davit Crane is a vital piece of life-saving equipment for offshore vessels, engineering ships, naval vessels, coast guard ships, research vessels, Ro-Ro passenger ships, cruise ships, and offshore oil platforms.
- small and medium-sized lifeboats
- emergency lifeboats
- work boats
- fast rescue boats

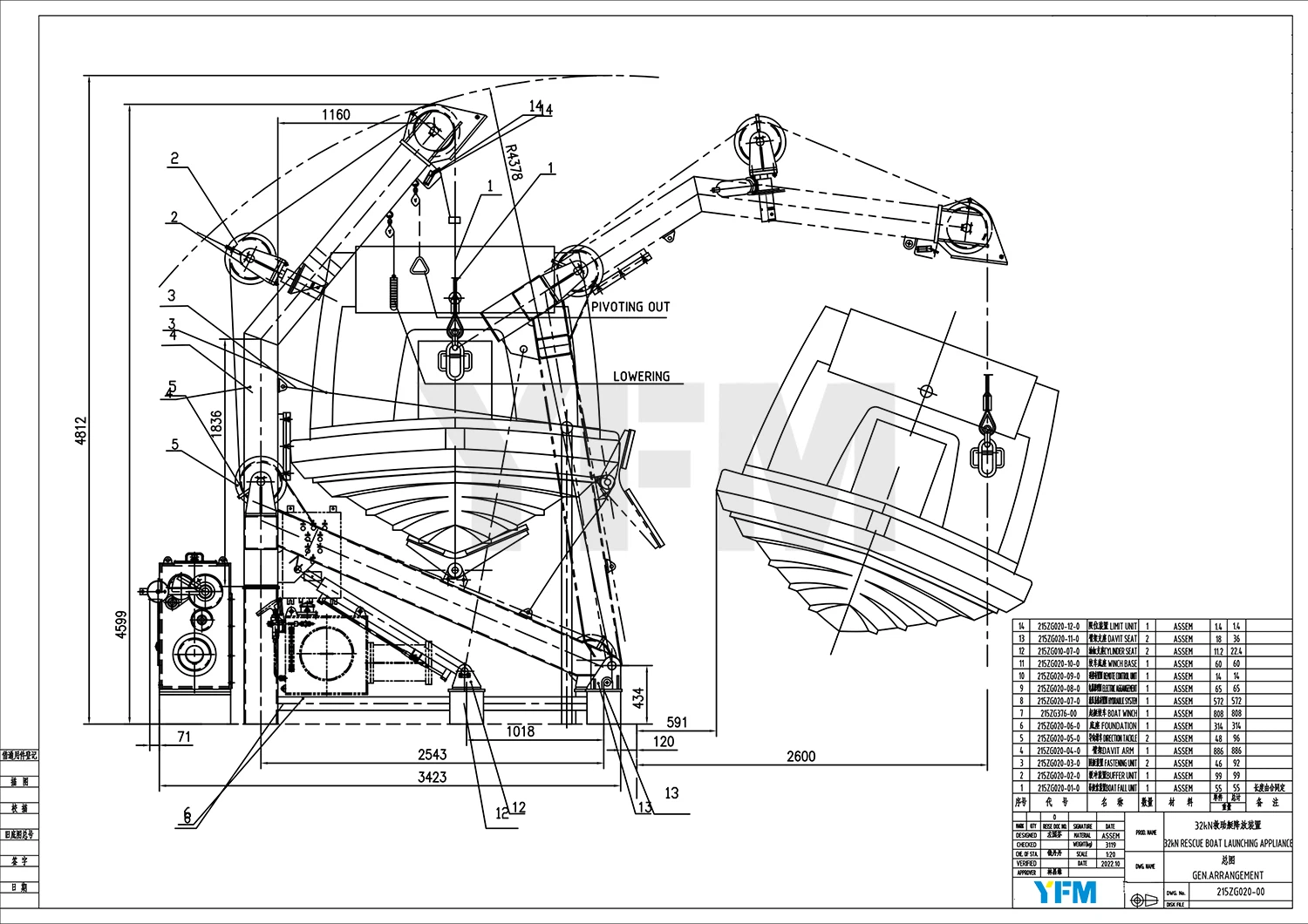

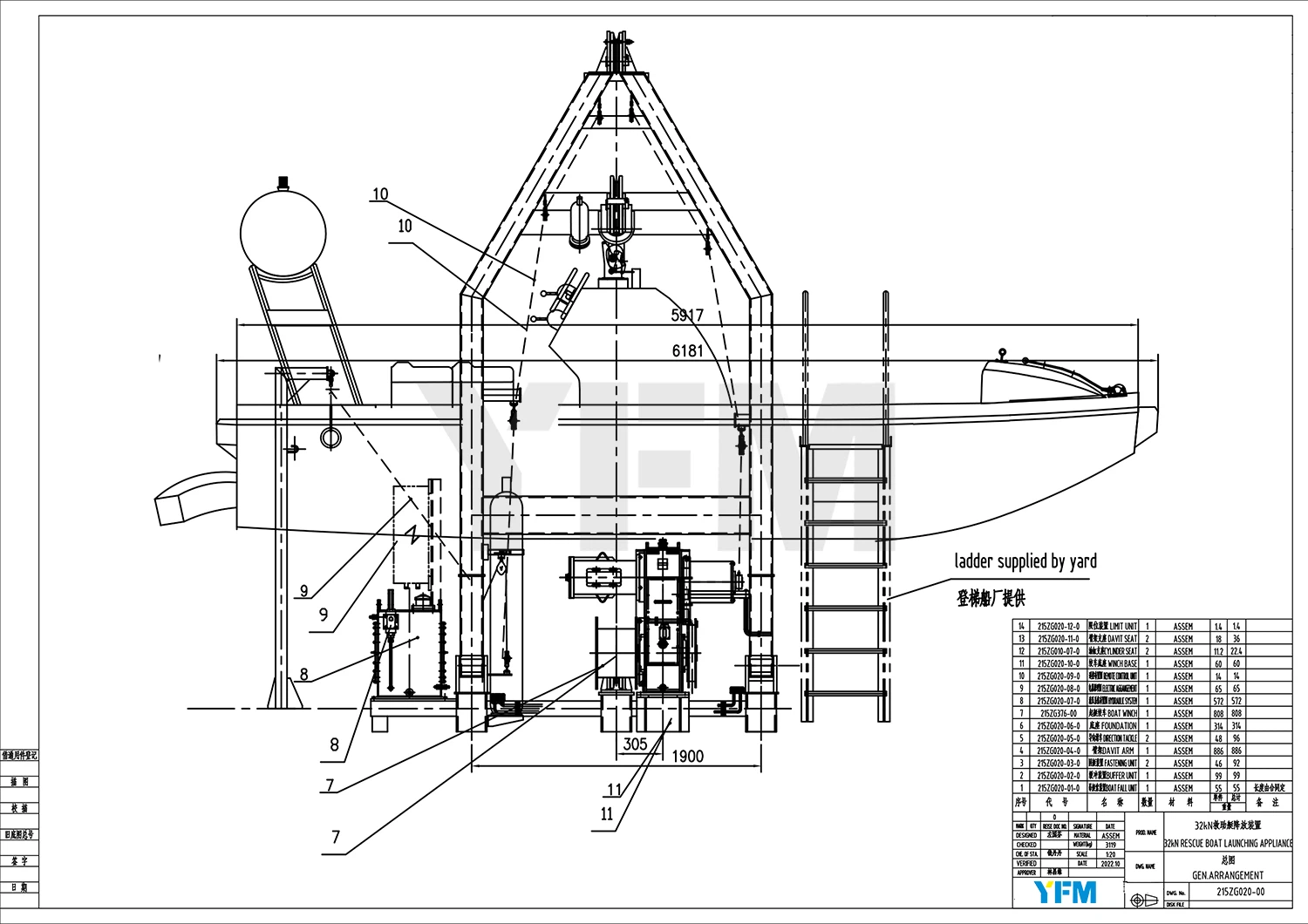

Design Drawing
data
|
Crane Type |
A-frame davit crane | |
| Working load | 32KN | |
| Hoisting load | 29KN | |
| Lowering load | 30KN | |
| Wire Rope SP. | φ20-18×19+FC | |
| Hoist Height | 30m | |
| Hoist Speed | ≥18m/min | |
| Lower Speed | 40-60m/min | |
| Power Supply | 380V/440V, 50HZ/60HZ,3Φ | |
| Motor | Pump Station | Boat Winch |
| Motor Type | Y132M-4-H | YZ160L-6-H |
| Motor Power | 7.5kW | 11kW-13kW |
| Level of Protection | IP56 | |
| Level of Insulation | F | |
| Start-Up Mode | Direct Start | |
| Ambient Temp. | -20°C~45°C | |
| Design Performance | List20°,Trim10° | |
| Suit Boat | 65R | |
