Equipped with our Cargo Grab Deck Crane
--- Maximize efficiency and versatility in your cargo handling

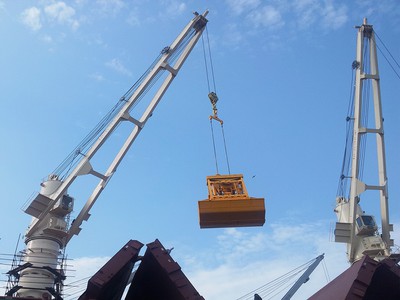

A Cargo Grab Deck Crane is a cargo transportation equipment. Its boom consists of a large truss structure and a rotating boom. It is mainly used on bulk carriers or barges and is one of the cargo ship's most critical production and safety equipment.
Considering the high safety, reliability, wind resistance, corrosion resistance, and maintainability requirements, YFM cargo grab deck crane adopts imported hydraulic components from Europe and the United States to ensure the product is durable, safe, and reliable.
At the same time, this deck crane can be used with grabs, spreaders, and other auxiliary equipment, mainly used in the ocean, ports, terminals, and other places for the effective loading and unloading of bulk cargoes such as yellow sand, grains, coal, mineral powders, bulk fertilizers, and so on.
Three-dimensional figure
- Unique lifting mechanism design, small volume, low noise, high working efficiency, safe and reliable braking.
- Full rotary technology, high efficiency, and smooth rotation.
- Built-in mechanical, electrical, and hydraulic integration system.
- Horizontal pitching motion by hydraulic wire rope and other luffing mechanisms.
- It is an independent unit with an integrated hydraulic power pack.
- All movements are equipped with fail-safe brakes.
- Fully enclosed and fully equipped cab with integrated heating system.
- Dual pump system with independent lifting and luffing/turning hydraulics ensures efficient cargo handling.
- The variable speed hoist will automatically adjust for the appropriate load to the highest possible speed.
- It can be used with grabs and spreaders
- Wide field of view
Options
- ABS, RINA, BV, CCS, RMRS, DNV, Lloyd's Register, API 2c. CE certificate Available
- Hoisting height and lifting capacity can be customized.
- Hydraulic pressure, motor, and other auxiliary accessories
- An explosion-proof system is optional
- Operating system
- Control system
- Metal surface coating
- Travelling mechanism
Technical Parameters
| Model | Load Capacity (T*m) | Max.Boom Length(m) | Pedestal Height(mm) | Pedestal Dia. (mm) | Est. Power(kw) |
| YFMFC-10T25M | 10T x 25 M | 25 | 1800 | 1820 | 90.0 |
| YFMFC-15T15M | 15T x 25 M | 25 | 2000 | 2080 | 110.0 |
| YFMFC-15T30M | 15T x 30 M | 30 | 2000 | 2250 | 125.0 |
| YFMFC-20T20M | 20T x 20 M | 20 | 2000 | 2250 | 110.0 |
| YFMFC-20T30M | 20T x 30 M | 30 | 2000 | 2650 | 135.0 |
| YFMFC-25T30M | 25T x 30 M | 30 | 2500 | 3000 | 160.0 |
| YFMFC-30T30M | 30T x 30 M | 30 | 2800 | 3500 | 200.0 |
Note:1. Larger load capacity cranes not listed herein can be offered on request.
2. Explosion-proof requirements in the inquiry.
application
Our Cargo Grab Deck Crane is a robust, reliable, and efficient loading and unloading solution that addresses various bulk cargo challenges. It is specially designed to handle bulk cargo such as grains, coal, ores, fertilizers, and waste materials rapidly and safely. It is ideal equipment for cargo ships, barges, and heavy transport vessels, significantly enhancing operational efficiency and profitability.
- Self-unloading Bulk Carriers
- Height Lift Deck Cargo Vessels
- Barges
- Loading and unloading operations at ports and inland river terminals
Call to action
Contact our professional sales team to obtain detailed technical information, customized solutions, and highly competitive quotations for our Cargo Grab Deck Crane. Let us provide you with the most suitable deck crane solutions to help you ride the waves in global trade!
Why choose YFM?
As a benchmark enterprise specializing in producing marine cranes, YFM Factory relies on a cluster of customized intelligent production equipment to build a full-process advanced manufacturing system covering the processing of super-large components, high-precision welding, and extreme environment testing. In the workshop, the 20-meter CNC floor-type boring and milling machine can precisely process the core slewing bearing of the crane. Its equipped 3D scanning calibration system can control the processing error of large structural parts within 0.05mm/m. Cooperating with the automatic double-wire submerged arc welding machine, it realizes the weld forming accuracy of the boom cylinder up to 99.8%, completely solving the hidden danger of welds caused by long-term salt spray corrosion of marine equipment.
The core assembly area has deployed the industry's first 10,000-ton CNC hydraulic synchronous tilter, which can perform a 360-degree all-around flip assembly of the 500-ton crane main structure. Combined with the 5G + AR remote guidance system, engineers can complete precision operations such as bearing preload debugging in the central control room, which is 4 times more efficient than traditional hoisting assembly. To simulate extreme marine working conditions, the factory is equipped with a -40℃ to 60℃ high and low temperature salt spray test chamber. It verifies the corrosion resistance of the whole machine through a 168-hour continuous spray test to ensure the reliable operation of the product in harsh environments such as deep sea and polar regions.
The collaborative operation of this advanced equipment has shortened the production cycle of a single YFM marine crane to 15 days, and the service life of key structural parts has exceeded 20 years. It ranks first in the domestic marine engineering equipment market share. It has become a core supplier of major national projects such as deep-sea wind power and polar scientific expeditions.
Every marine crane YFM produces is built with classification society certification as the core standard. Starting from the selection of high-strength alloy steel, it strictly follows the requirements of various classification societies for material yield strength and low-temperature toughness; in the manufacturing process, the welds realized by automatic welding robots undergo third-party non-destructive testing (UT/MT), and all indicators exceed the certification standards; the final finished products also need to pass the static load test with 150% overload, 125% dynamic load test and 100,000 cycles of fatigue test. All data are uploaded to the classification society database for real-time filing. At present, YFM spreaders have fully passed mainstream certifications such as CCS (China Classification Society), ABS (American Bureau of Shipping), DNV (Det Norske Veritas), etc. They not only ensure stable performance in harsh marine environments such as salt spray, huge waves, and low temperatures, but also meet the safe operation needs of high-end scenarios such as deep-sea oil and gas development and offshore wind power installation, becoming a "zero-hidden danger" high-quality choice in the eyes of global shipowners and offshore engineering operators.
Classification society certification
Classification society certification is a highly authoritative qualification recognition in the field of marine and offshore engineering equipment. Professional classification societies from various countries (such as ABS, LR, CCS, etc.) conduct comprehensive and strict audits on the design, materials, manufacturing processes, and performance safety of products by international unified standards. The certification issued after passing indicates that the products fully meet the requirements of extreme environments for maritime navigation and operations, and is a quality benchmark trusted by the global shipping industry.
