Grab Crane for Bulk Carrier
Grab Crane Dedicated for Bulk Carriers | Efficient · Intelligent · Weather-resistant
YFM grab crane for bulk carriers is a high-efficiency lifting equipment designed specifically for bulk carriers to load and unload bulk cargo (such as coal, ores, grains, etc.).

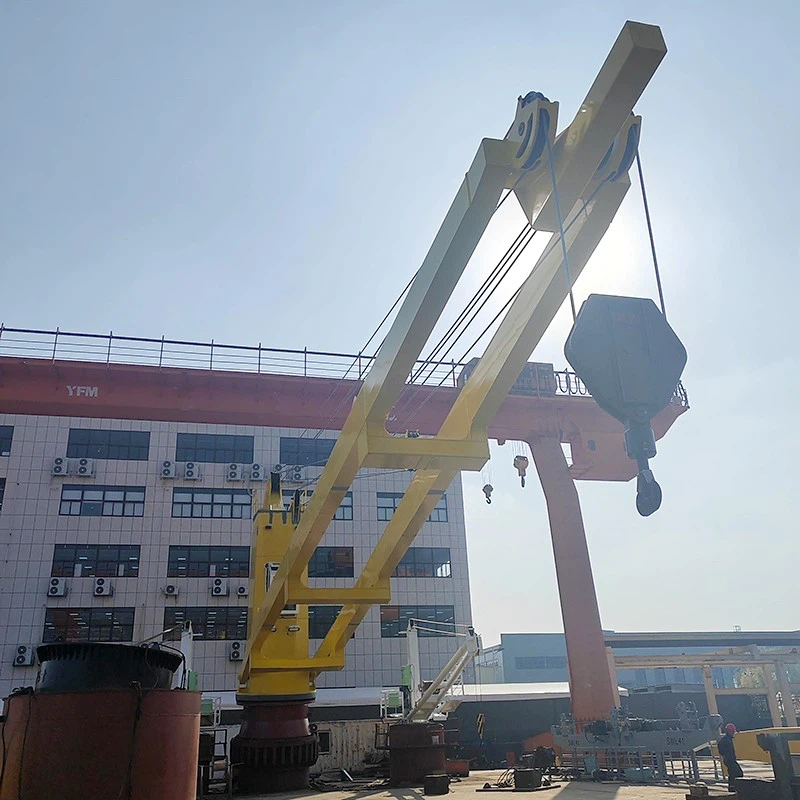

This kind of grab crane --- like the left picture, is often used in conjunction with single rope remote-controlled grabs. With a modular structure, intelligent control system, and enhanced anti-corrosion process, the bulk cargo cranes can adapt to high-frequency operations and harsh marine environments, helping customers to maximize port loading and unloading efficiency and optimize operating costs.
We can also customize a higher-efficiency four-rope grab crane for bulk carriers as required, which is paired with four-rope grabs for bulk cargo handling.
Success Case
Below is an example of a grab crane for bulk carriers with a specification of 30 tons and 30 meters. For additional specifications, please contact our customer service for detailed information. We accept customization.
Applicable Grab Types: Single Rope Clamshell, Remote Control Grab, and Environmentally Friendly Grabs.

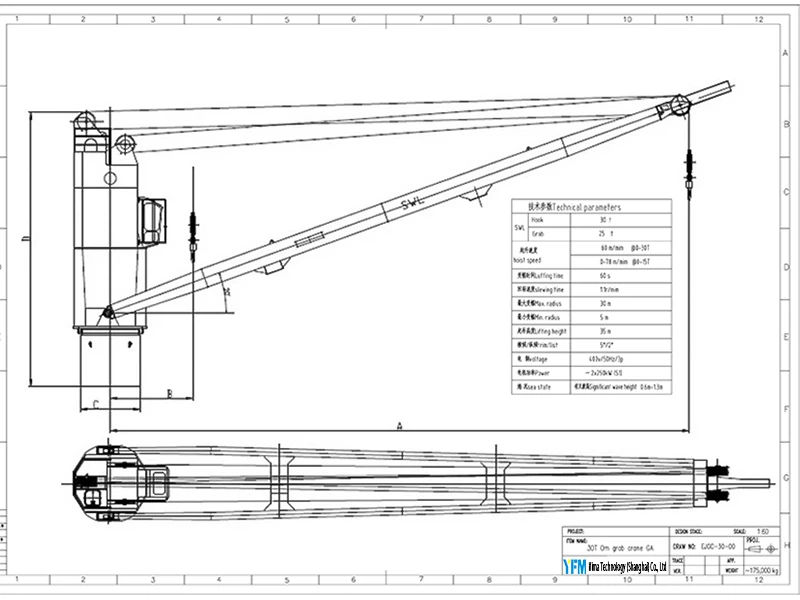

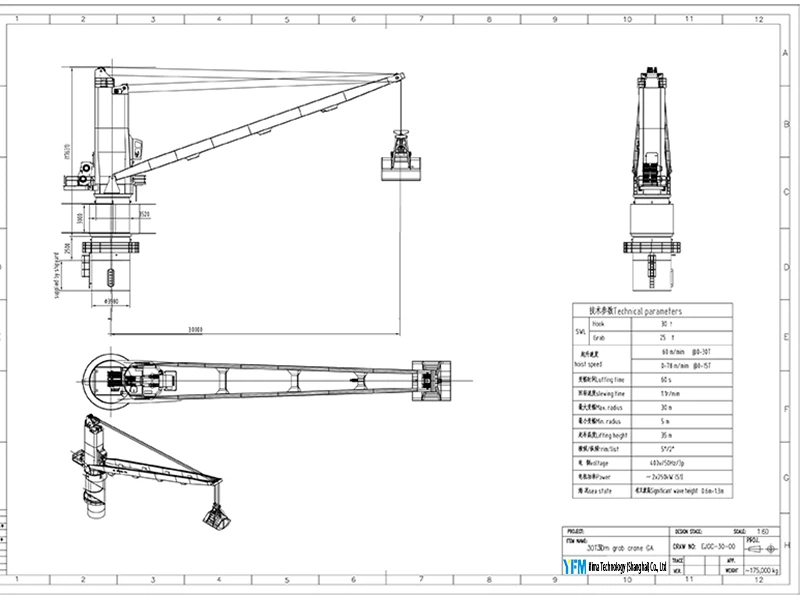

Product drawing

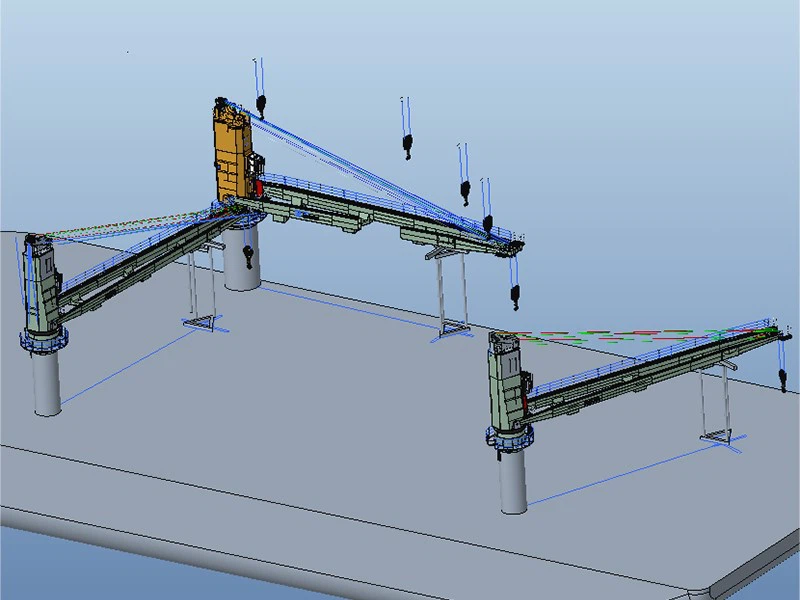

FEA
Technical Parameters
| Range-Rated Load | 30 tons |
| Working Radius | 5-30 meters |
| Lifting Height | 15-50 meters |
| Slewing Angle | Full slewing of 360° |
| Working Speed Lifting | 10-30m/min |
| Working Environment Temperature | -20℃~+40℃ |
| Drive system | motor-driven |
| Power | 380V,50HZ,3P |
| Protection Level | IP66 |
Detail
1. Precise and Efficient Operation
-
Intelligent Linked Control
-
Ultra-Strong Load Capacity
2. Durable and Weather-resistant Design
-
Anti-corrosion Protection
-
All-weather Adaptability
3. Both Safe and Energy-saving
-
Multiple Safety Protections
-
Energy Consumption Optimization Technology
4. Global Service Network:
24-hour emergency response, global spare parts supply, covering more than 50 major ports.
5. Customized Services to Meet Diverse Needs
6. Authoritative Certification Guarantee:
Certified by nine major classification societies, including DNV-GL, CCS, BV, RINA, and RS, among others, the quality is globally recognized.
Shorten the operation time by 15% to 20%
- Adopt PLC and variable frequency drive.
- The seamless coordination of grab actions like opening/closing, lifting, and slewing.
Widely adaptable
- The grab crane caters to small and medium-sized bulk carriers up to ultra-large ore carriers.
- Wide temperature range: from -40°C to +55°C.
- The ship crane is not afraid of the impacts of heavy rain, dust, and waves.
Service life: up to 20,000 hours
- Adopt High-Life Corrosion-resistant (HLE) steel.
- Triple coating process (hot-sprayed zinc + epoxy primer + polyurethane topcoat)
- Approved salt spray test
Failure rate is 30% below the industry average
- Overload protection
- Limit protection
- Wind protection
- Anti-tipping devices, etc.
Achieve 25% energy savings overall
- Energy feedback type drive device
- Lightweight grab design
Custom Service
- Customize the most suitable crane model and configuration
- Provide one-stop services from design, manufacturing, installation, to commissioning
- Minimize the risks
Application
Bulk Cargo Loading and Unloading
Rapid transfer of goods such as coal, iron ore and grains between ships and docks.
Environmentally Sensitive Operations
Equipped with a closed grab to reduce dust diffusion and meet the environmental protection regulations of EU ports.
Operations in Narrow Spaces
Compact base design, suitable for small and medium-sized bulk carriers with limited deck space.
Why Choose Us?
By choosing our grab crane for bulk carriers, you choose an efficient, reliable, and professional loading and unloading solution.
We look forward to working with you to jointly improve the transportation efficiency of bulk carriers and create a bright future for the shipping industry together.
Our engineering team can provide you with the selection calculation of ship-mounted grab cranes, 3D layout simulation, and full life cycle cost analysis to start a new experience of efficient loading and unloading!
