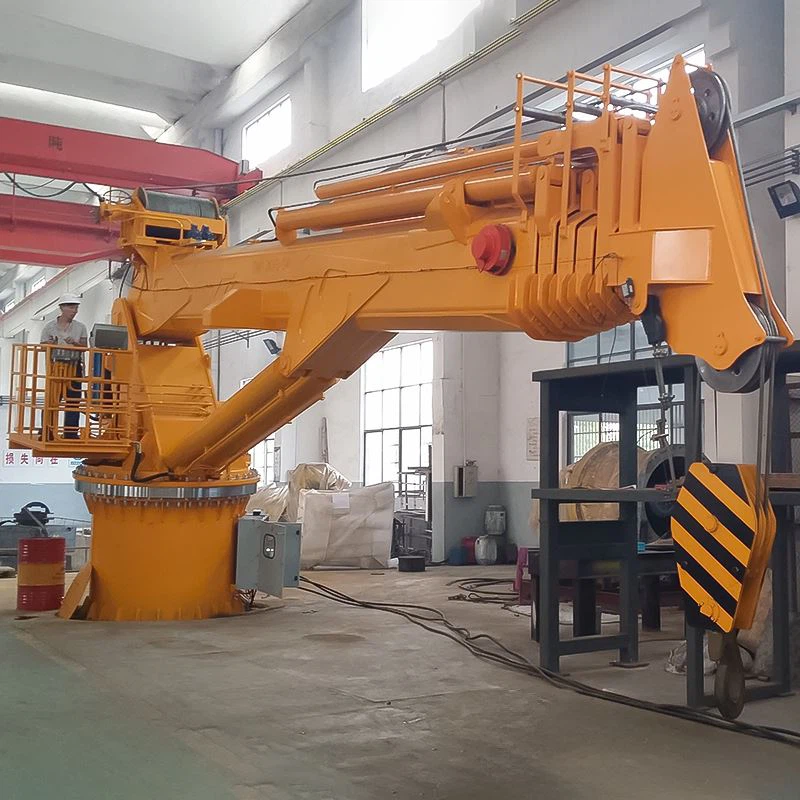

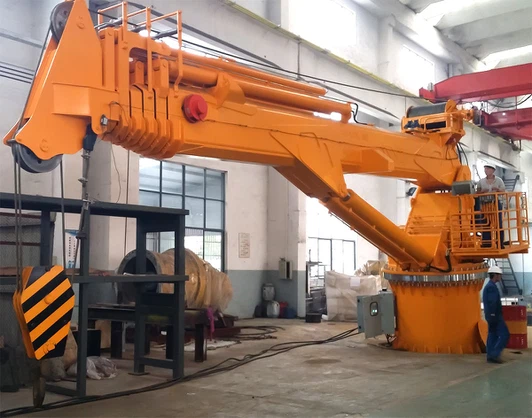

What is a Telescopic Boom Crane?
- The ultimate partner for efficient material handling
The telescopic boom crane for ship is a best choice for lifting equipment in large-span operations.
YFM telescopic boom crane can change the working radius by extending its boom, enabling it to adapt to various working environments.
The telescopic boom crane is especially suitable for operations in large-span areas. It complies with the CE, ISO 4301, and DNV-GL standards, and has won the trust of customers in critical lifting tasks in more than 30 countries.
YFM telescopic boom crane can be applied to offshore platforms, ship decks, ports or shipyards.

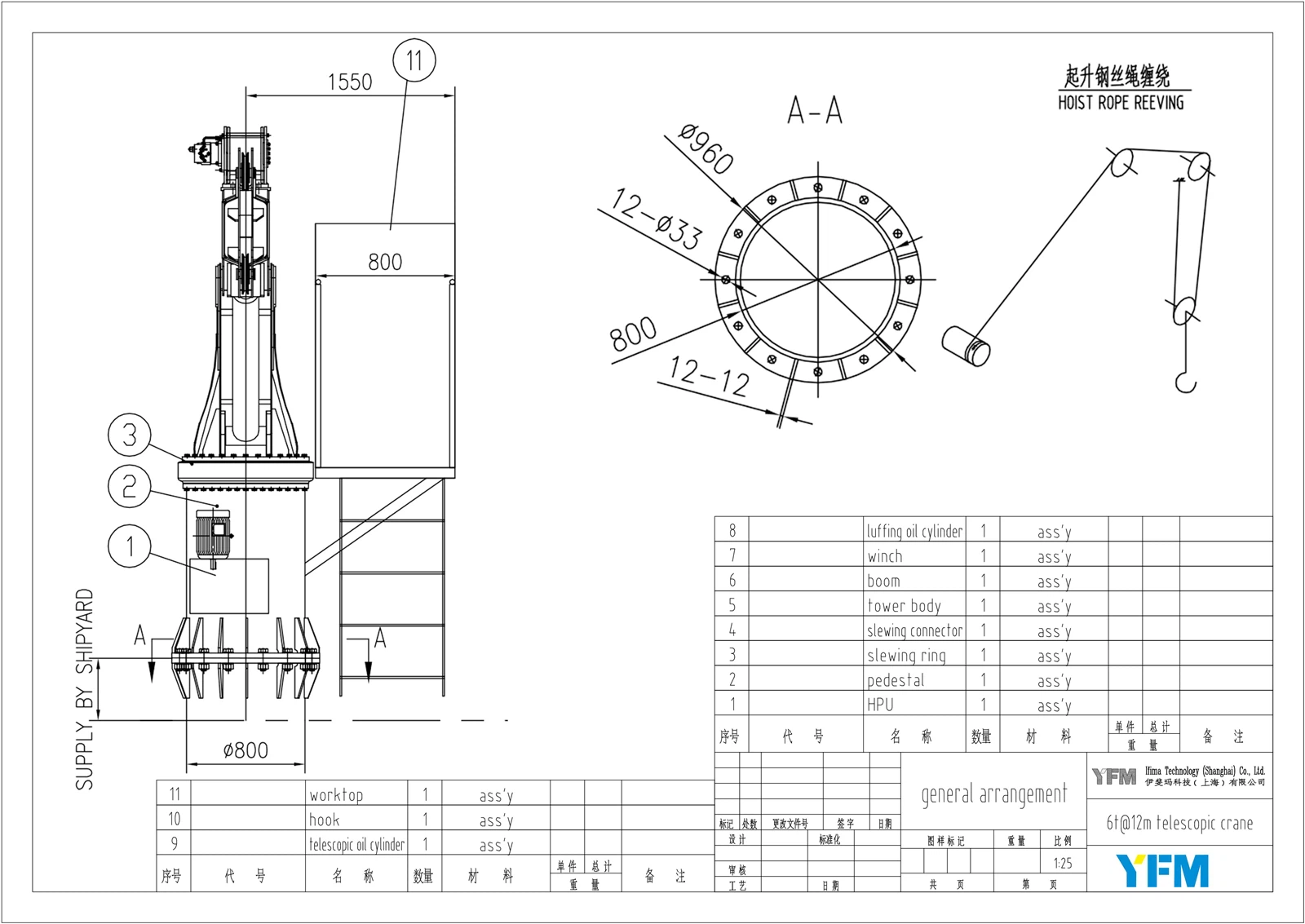

Crane Components
1. HPU 2. Pedestal 3. Slewing ring 4. Slewing connector
5. Tower body 6. Boom 7. Winch 8. Worktop
9. Crane Hook 10.Telescopic oil cylinder 11.Luffing oil cylinder

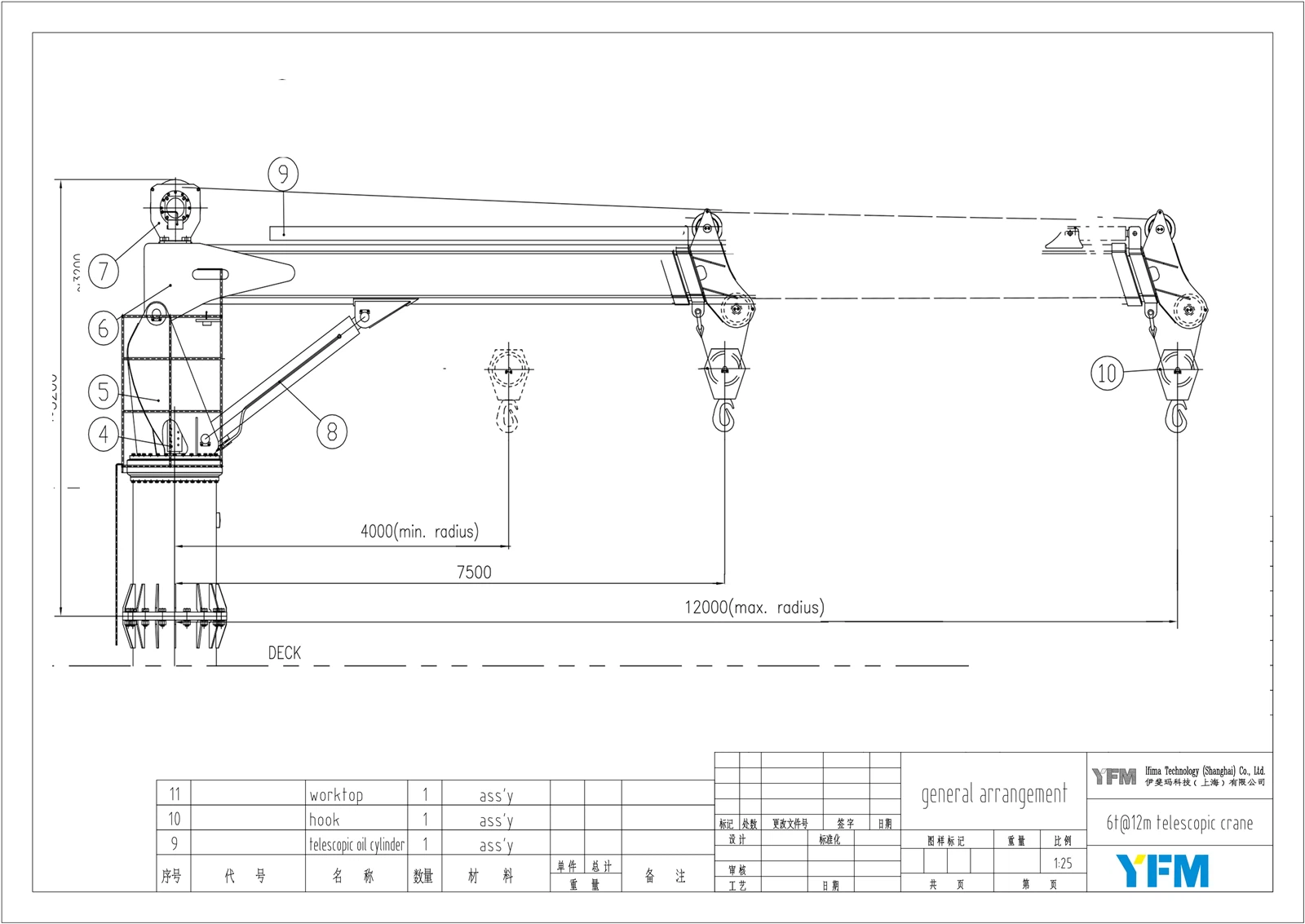

Design & Main Technical Parameters
--0.3T 12M Telescopic Boom Crane
Datas
| Model | 0.3T 12m telescopic boom crane | |

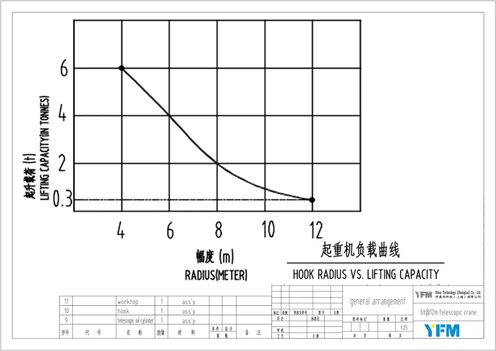

| Main Hoist Mechanism | SWL | Load chart |
| Full load hoist speed | 15m/min | |
| Free load hoist speed | 30m/min | |
| Acc. time(full load) | 3s | |
| Acc. time(free load) | 3s | |
| Main hoist height | 25m(TBD) | |
| Main hoist wire rope | 22mm, 35x7, Grade, 1960Mpa | |
| Luffing Mechanism | Luffing scope | 4m~12m |
| Acc. Time | 3s | |
| Luffing time | 80s | |
| Working luffing angles | 0°~77° | |
| Max. oil pump force | 500KN | |
| Slewing Mechanism | Slewing speed | 0.75r/min |
| Acc. Time | 4s | |
| Slewing angles | 360° | |
| Motor Parmeter | Motor type | 30kw/IP56 |
| Duty | S1-100% | |
| Electric Level | 440V/60HZ/3P | |
| Load On Deck | Max. vertical force | 400KN |
| Max. tipping moment | 1000kNm | |
| Max. slewing torque | 90kNm | |
| Others | Designing temperature | 0℃ ~ +45℃ |
| Crane weight | ~10T | |
Adavantage
- Hydraulic telescopic system can achieve a working radius up to 45 meters
- Continuous 360° rotation with a positioning accuracy of ±2°
- In light-duty operations, the energy-saving mode can reduce fuel consumption by 20%.
- Overload protection system
- High-strength and corrosion-resistant steel materials
- Modular design
- Remote control device/cab(Optional)
- Constant tension
- Personnel lifting - for carrying people
- Capable of adapting to complex sea conditions
- Optional colors
- OEM & ODM
- Certification from international classification societies
- Customizable
Applications
- Fish farming vessels
- Large service vessels
- Cargo handling cranes
- Provision cranes
- Substation cranes
- Deck cranes (shipboard)
- Ship to ship cranes
Upgrade Your Deck Operations Now!
Maximize productivity and safety with a durable crane. If you need to get a quotation, technical drawings, or a customized solution tailored to your needs, please contact our team.
