Professional marine deck crane manufacturer

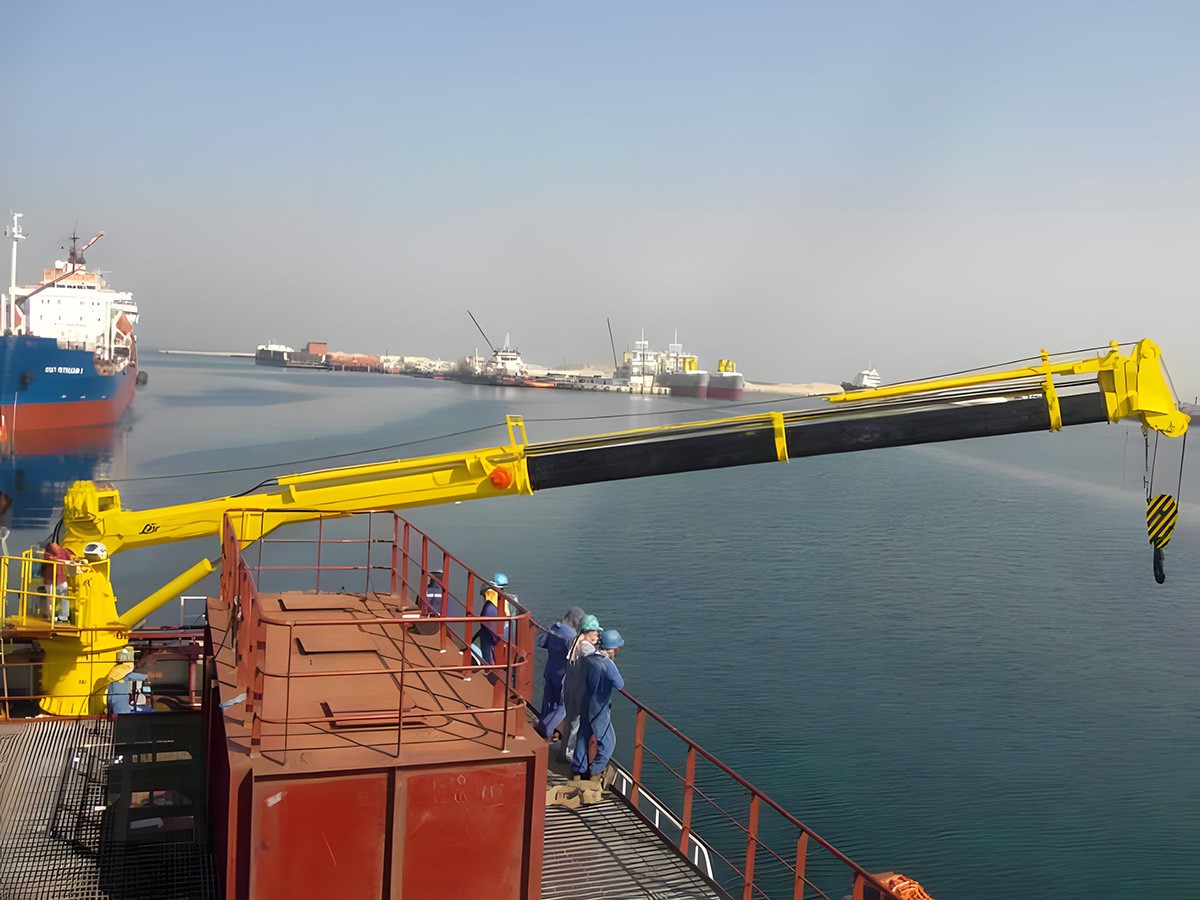

A marine deck crane is a cargo-handling device installed on the deck of a ship. It is mainly used for important tasks such as transferring goods between ships, offshore replenishment, and lowering and recovering underwater operation equipment.
Marine Challenges: Highly corrosive salt-laden air, constant wind and wave rough seas, limited deck space, and high-intensity, high-frequency operation requirements.

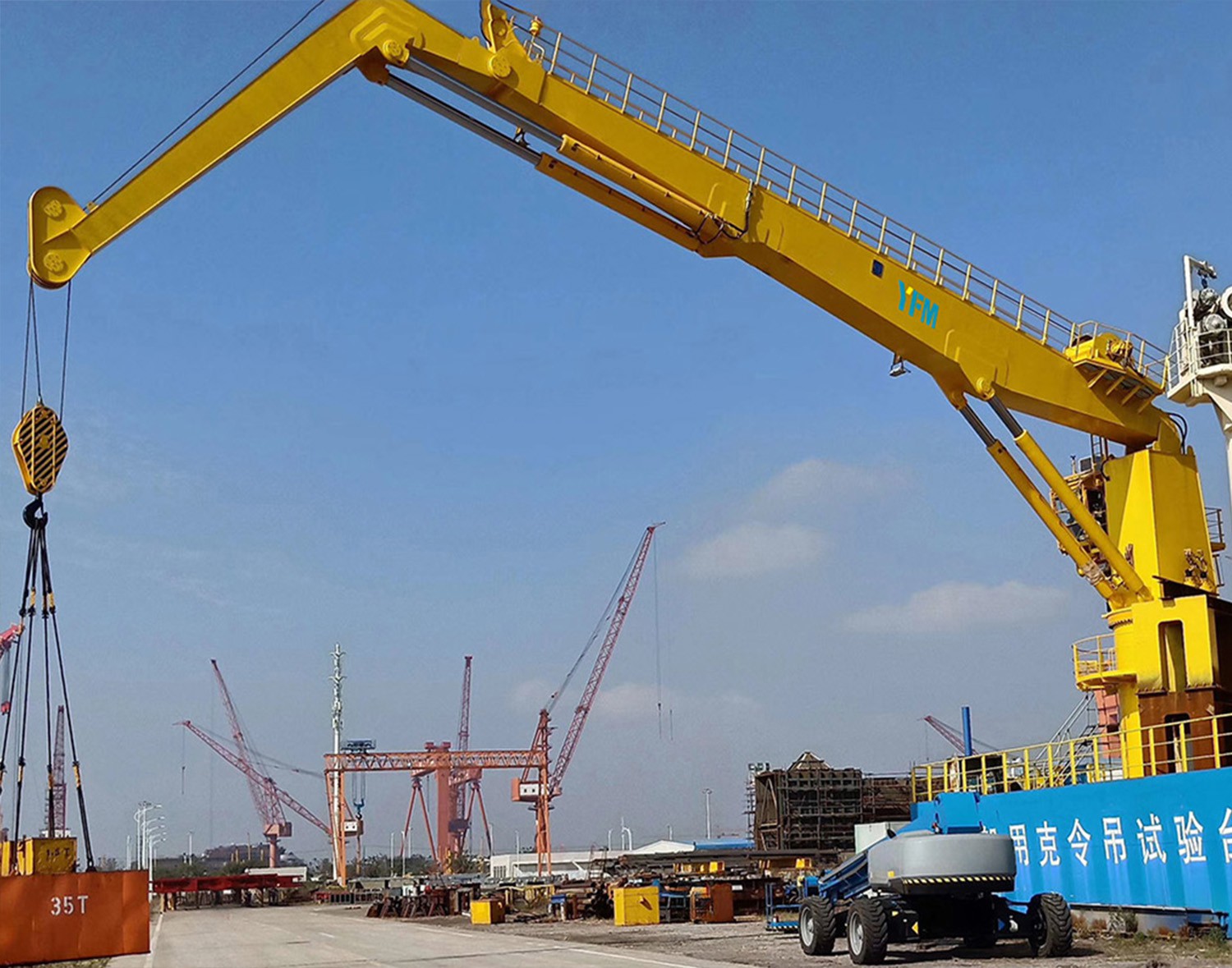

YFM Marine Deck Crane is specifically designed to work in marine environments, supporting all types of vessels. It offers fixed boom, telescopic boom, folding boom, and telescopic-folding boom options, with a lifting capacity range of 0.5 to 200 tons and a horizontal working range of 2 to 50+ meters.
- Driver's cabin (for large lifting equipment)
- Deck-mounted base
- Tower body (with ladder)
- Operation console
- Jib/boom
- Hook
- Crane winch
- Steel wire ropes and pulleys
- Hydraulic power unit
- Overload protection, limit switches, and an emergency stop system
- Hoses between the crane and the hydraulic power unit
- Cables and plugs between the hydraulic power unit and the power supply
Features and Advantages
- Ready to use once powered on
- Constructed with high-strength marine-grade steel
- Triple-layer marine topcoat with heavy anti-corrosion treatment
- Easy-access maintenance walkways
- Responsive control system with clear logic
- Three-tier safety protection system (overload protection, limit switches, and emergency stop system)
- Designed service life of 20+ years
- Global network support and spare parts supply for worry-free after-sales service
- Flexible crane type selection based on different deck layouts and operational requirements
- Suitable lifting attachments (grab buckets, spreader beams, hanging baskets, etc.) can be selected according to various working scenarios
- Highly customizable
- Cargo Handling: Independently load and unload cargo in ports or anchorages without shore-based crane support.
- Equipment Transfer: Safely lift and move workboats, containers, scientific research equipment, or other operational modules on board ships.
- At-Sea Replenishment: Transfer supplies and personnel between ships or between ships and offshore platforms while underway or at operating locations.
- Support Operations: Provide reliable lifting support for marine engineering, scientific research surveys, offshore rescue, and other missions.
Our Commitment
Every marine deck crane we provide embodies our respect for the ocean and our dedication to professionalism. We don't make empty promises-we let our solid craftsmanship, reliable quality, and global service speak for themselves.
Feel free to contact us to learn how our products can become an indispensable and dependable force on your vessel.
👉https://www.yfm-crane.com/contact-us
Drawings
technical parameters
| SWL | 4T | Working Conditions | Heel | ≤5° |
| MAX Working Radius | 8m | Trim | ≤2° | |
| MIN.Working Radius | 2.5m | ELEC.MOTOR | Power | 37KW |
| Hoisting Speed | 0～15m/min | Speed | 1760r/min | |
| Hoisting Height | 25m | Power Resource | AC440V/60HZ | |
| Slewing Speed | 0～0.8r/min | Protect Class | F | |
| Slewing Angle | 360°endless | Working Type | S1 | |
| Luffing Time | 65s | Oil Flow | 75L/min | |
| Design Temperature. | -10°to 40° | Weight of crane | ~7500Kg | |
