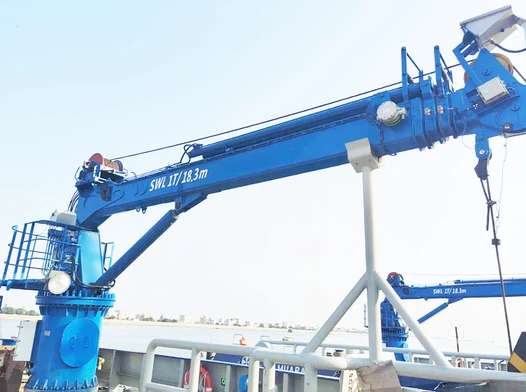

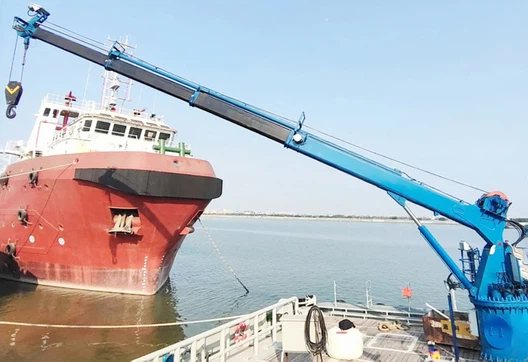

Extending Boom Deck Crane
--- for ship/boat/offshore platform
The extending boom deck crane (often referred to as a telescopic/extendable boom deck crane) is a type of marine lifting equipment installed on ship decks or offshore platforms. Operators control the extension and retraction of hydraulic cylinders via control levers to push the nested boom sections outward, thereby providing a flexible working radius and height for lifting operations and enabling long-distance and high-altitude lifting tasks.
The deck crane can be configured with 360° continuous slewing functionality for unobstructed operation.
Meanwhile, when not in use, the extending boom deck crane can be retracted to minimize installation space, making it an indispensable type of lifting machinery for marine operations.
Features
Main Steel Structure: Adopts high-strength corrosion-resistant steel.
Protection Class: IP56 or higher.
Key Components: Modular design.
Operator Console Type: Open type.
Hoisting System: Equipped with overload protection devices and limit switches.
Wire Rope: Galvanized rotation-resistant type.
Power Pack: Integrated Hydraulic Power Unit (HPU).
Steel Structure Surface Treatment: Shot blasting, reaching Sa2.5 derusting standard.
Painting: Epoxy paint system is applied, with dry film thickness of 75 μm for primer, 75 μm for intermediate coat, and 100 μm for epoxy topcoat.
Working Conditions: 5° transverse inclination, 2° longitudinal inclination.
Certifications: CCS, ABS, BV, DNV, RINA, RS, LR, KR, NK, CE, etc.
Certificates: MPC,CO,Form E, etc
Optional
Remote control system
Operator cabin
MOPS/AOPS
Man-riding system
Heave compensation system
Explosion-proof system
Heating/cooling unit
Classification society certification categories
Integrated multiple safety devices (including overload protection, limit switches, emergency braking system and load moment indicator)
Attachments (spreader beams, grabs, baskets, etc.)
Applications
The extending boom deck crane is widely used for cargo transfer, equipment maintenance, and supply operations at sea or in ports. Suitable for a variety of vessel types (such as supply vessels, workboats, research vessels, small cargo ships, etc.) and diverse tasks (cargo loading/unloading, material supply, equipment maintenance, small-scale rescue operations, etc.), it enhances the vessels' comprehensive service capabilities and market competitiveness.
Typical Scenarios of Extending Boom Deck Crane
- Cargo loading and unloading operations for bulk carriers, container ships, and OSVs
- Maintenance and repair of shipboard equipment such as power systems, pump units, and navigation devices
- Supply operations for transporting personnel, tools, and daily necessities to offshore platforms
- Marine salvage and rescue operations, including recovering sunken debris and lifting damaged equipment
