Knuckle Boom Marine Crane

--- Precision and reliability, durable and long-lasting, fearless of the challenges of harsh maritime operations

Class Society

YFM knuckle boom marine crane is widely favored by shipowners due to its features, such as folding boom design, electro-hydraulic drive, low-center-of-gravity structure, and compact storage size, especially in operation fields where heavy lifting capacity is required but deck space is limited.

This marine crane delivers precise, safe, and high-performance solutions in critical scenarios and is well-suited for use on supply vessels, sea engineering projects, or shipyard/port/dock/jetty operations.

knuckle boom marine crane

Core Features

Saves 1/3 space on the deck
Working radius of up to 30+ meters
Wide lifting capacity range, up to 100+ tons
Three-layer marine-grade anti-corrosion coating (epoxy paint)
More stable hydraulic control system
High customization flexibility, lifting capacity, radii, dimensions, auxiliary grabs, etc.

Wave compensation system to offset the impact of waves(Optional)
Explosion-proof motors, such as Exd I and Exd II classes(Optional)
Compliance with international classification society standards (ABS, RINA, RS, CCS, etc.) as well as EU CE, ISO, and other standards
Strong environmental adaptability, capable of withstanding -40℃ to +50℃

Design

---

knuckle boom marine crane

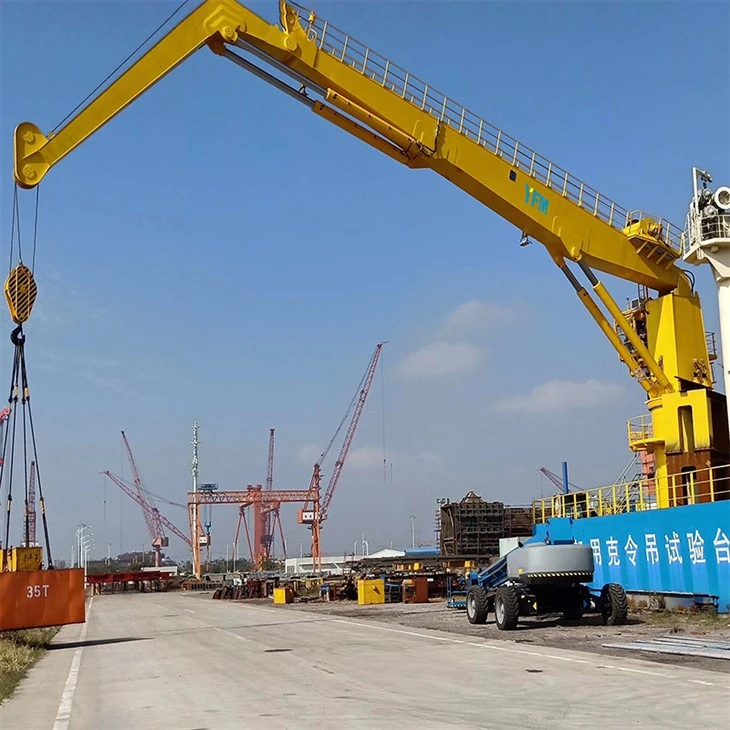

20T 20M Knuckle Boom Marine Crane

Main components

Boom Ass.
Slewing Support
Tub.
Hoist Winch
Slewing Drive Ass.
Main Hydraulic Cylinder Ass.

Hook Reeving System
Aux. Hydraulic Cylinder Ass.
Cabin
HPU
Ladder and Platform

Load Curve

knuckle boom marine crane

Mechanism	Mechanism Parameters
Main Hoist Mechanism	Safe Working Load	20T
	Full Load Hoist Speed	15m/min
	Free Load Hoist Speed	30m/min
	Main Hoist Height	12m/50m (up/down interface)
	Main Hoist Wire Rope	1950MPa, 38mm
Luffing Mechanism	Luffing Scope	4.5m~20m
	Luffing Time	120s
	Working Luffing Angles	30°~75°
	Max. Oil Pump Force	1200kN
Slewing Mechanism	Slewing Speed	0.5r/min
	Acc. Time	6s
	Slewing Angles	360° no limit
Working Temperature		-20 ~ +40℃
Design Condition		List <5°,Trim<2°
Class Society		CCS
Crane Weight		~ 110t

knuckle boom marine crane

Assembly Field

knuckle boom marine crane

Load Testing

Safety Warning Devices

YFM cranes equipped with:

- A start-up bell or alarm.

- Boom extension indicator.

- Boom lights will provide illumination for the cargo operation area.

- Complete switchgear is provided to ensure the disconnection of the pump unit power supply.

- Designed to prevent accidental contact with live components.

- Electrical hazard signs are marked on the electrical equipment enclosures.

- The hoisting and steering mechanisms normally have closed brakes, and the boom extension hydraulic cylinders have locks.

- The winch is equipped with limiters.

- The hook is equipped with a drop-proof device.

- Standard grounding devices are provided.

Forms of electrical protection

The electrical drive circuit of YFM knuckle boom marine cranes includes the following types of protections:

A) Zero protection to prevent the motor from automatically starting after power is restored following a power outage;

B) Motor overload protection;

C) Motor starting protection with contactor locking devices;

D) Protection against short-circuit current in the control circuit;

E) Devices in the power supply circuit to limit inrush current.
