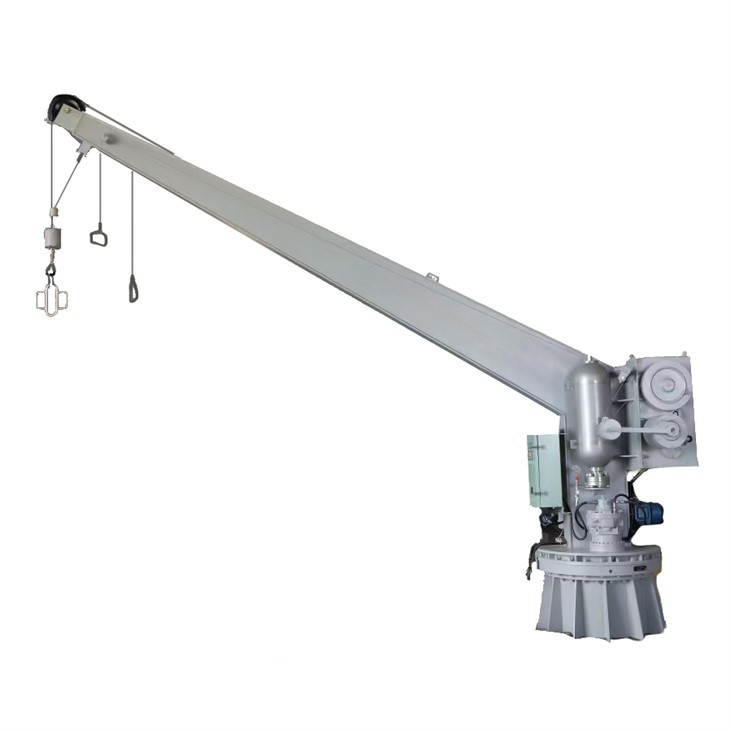

Single-Arm Boat/Raft Davit Crane
The YFM single-arm boat/raft davit crane is advanced lifting equipment
specially designed for ships, offshore platforms, and emergency lifesaving scenarios. It integrates the dual functions of a davit and a crane. It adopts an innovative single-arm structure with integrated hydraulic or electric drive systems, enabling fast and smooth release and recovery of lifeboats, life rafts, RHIBs, and various emergency equipment to ensure efficient personnel evacuation and material transportation in emergencies.
Operators can remotely control the single-arm boat/raft davit crane through wireless remote control devices for flexible and convenient manipulation. Crew members can easily release and operate the winch handbrake inside the boat via steel cables connected to the winch brake arm and cable reel or perform relevant operations on the deck, significantly enhancing operational convenience and safety.
This boat lifting equipment strictly complies with the IMO and the International Convention for the SOLAS standards, making it a trustworthy and preferred product in maritime safety.
Design
Main Technical Parameters
| Max Working Load | 23 kN Single-Arm Boat/Raft Davit Crane | |||||
| Hoisting Load | 14 kN | |||||
| Hoisting Speed Of Wire - ROPE | ≥18 m/min | |||||
| Lowering Speed Of Wire - Rope | 40 - 60 m/min | |||||
| Size Of Wire - Rope | Φ16,18×19FC, Min. B.L 140kN | |||||
| Capacity Of Drum | 30 m | |||||
| Max. Slewing Load | 14kN | |||||
| Max. Slewing Angle | ≤330° | |||||
| Slewing Speed In Electric Power Driven | ≥0.25 r/min | |||||
| Motor of winch | Motor of oil pump | |||||
| Type | YZ132M1-4-H | YZ112M1-4-H | ||||
| Voltage | 380V | 415V | 440V | 380V | 415V | 440V |
| Frequency | 50Hz | 50Hz | 60Hz | 50Hz | 50Hz | 60Hz |
| Output | 5.5kW | 5.5kW | 6.3kW | 4.0kW | 4.0kW | 4.0kW |
Technical Requirements
1. This davit comply with MSC.47(66) or "SOLAS 74", as well as MSC.48(66) and "LSA CODE".
2. The davit shown in this drawing is of the port-side type. The starboard-side type davit will be drawn symmetrically.
Core Advantages
1. Compact Design and Flexible Adaptability
- The single-arm structure saves deck space and is suitable for various ship types (merchant ships, cruise ships, naval vessels) and offshore platforms. - Modular design supports customized loads (500kg–3000kg), working radii (2m–6m), rotation angles (0°–270°), and extension lengths to meet diverse scenario requirements.
2. Exceptional Safety Performance
- Equipped with a dual braking system, overload protection, and an emergency manual release device to ensure operational safety under extreme conditions.
- Protection rating: IP66/IP67 (waterproof and dustproof).
- Certified by ISO 9001 quality management system and classification societies such as DNV/GL and ABS to ensure global compliance.
3. All-Weather Durability
- The main body is constructed from high-strength weather-resistant steel, with a surface treated by hot-dip galvanizing or epoxy coating, offering salt spray corrosion resistance up to C5-M grade.
- Operates in extreme temperatures from -30°C to +55°C, withstanding harsh marine environments.
4. Intelligent Control Experience
- Optional wireless remote control/panel control for real-time monitoring of load status and equipment operation parameters.
- Low-noise operation and a maintenance cycle of up to 12 months reduce full lifecycle costs.
- Drive modes: hydraulic/electric.
Application Scenarios
- Marine Lifesaving Systems: Rapid deployment of lifeboats and rafts to ensure the safety of crew and passengers.
- Offshore Platform Operations: Hoisting materials, equipment, and personnel to improve operational efficiency.
- Emergency Response: Integrated into rescue vessels and patrol boats to address maritime emergencies.
Act Now and Invest in Safety!
Whether you need a standard model or a customized design, our engineering team will provide you with the optimal solution. We offer one-stop services, including design, production, installation, training, and lifelong technical support.
📞 Contact Us: +86 15818704927
📧 Email: anne@yfm-crane.com
🌐 Online Consultation: Click the chat window on the right to get a real-time quote!
Some boat davit Cranes
